Deploying a Guitar Practice App on My Phone Kubernetes Cluster

Containerizing a React + FastAPI audio processing app and deploying it to a k3s cluster made of old smartphones.

The App

The Guitar Practice App by ivmos is a web application for guitar practice. Upload any audio file and it separates the guitar track from the rest of the instruments, detects the BPM, and generates a synchronized metronome — all in the browser. You can then control the volume of each stem independently: mute the guitar to play along yourself, or crank the metronome to nail the timing.

The tech stack: a React + Vite + Tailwind CSS frontend talks to a Python FastAPI backend that does the audio heavy lifting with librosa, numpy, and scipy. No database — just file uploads and processed WAV files.

I wanted to deploy this on my k3s homelab cluster — a Lenovo laptop and three OnePlus phones connected via USB running postmarketOS. This post covers the containerization and deployment process.

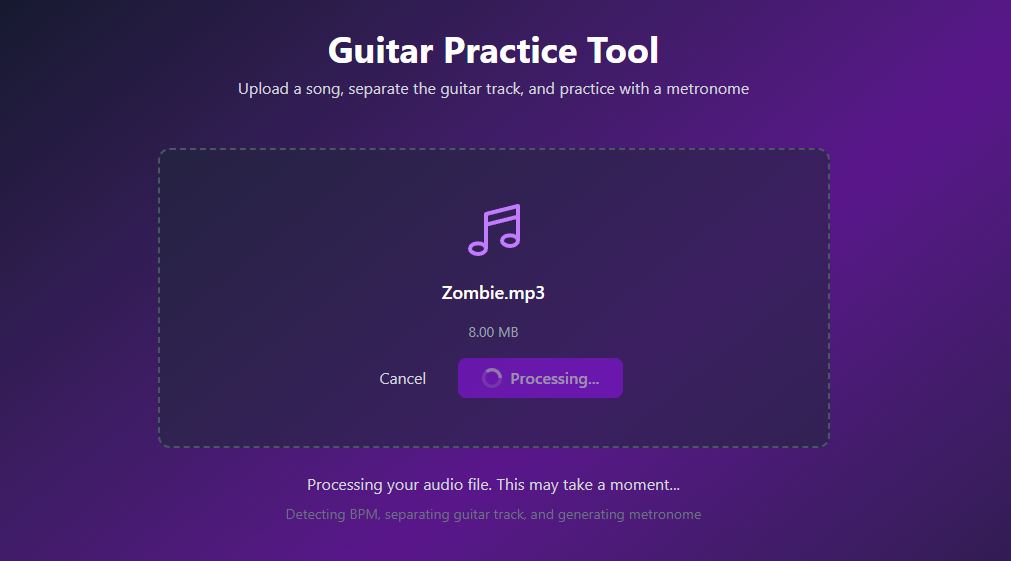

Guitar Practice App uploading a song

Architecture on the Cluster

Browser → MetalLB (192.168.100.202)
            ↓
    guitar-frontend (nginx)
      ├── /            → serves React SPA
      ├── /api/*       → proxy to guitar-backend:8000
      └── /processed/* → proxy to guitar-backend:8000
            ↓
    guitar-backend (FastAPI + librosa)
      ├── uploads/
      └── processed/

Both services run on k3master (the laptop) because the backend needs significant CPU for audio processing — librosa's BPM detection and FFT-based stem separation can spike to 100% CPU on large files. The phones serve as workers for other workloads.

Step 1: Fix Hardcoded URLs

The original app was built for local development with localhost:8000 hardcoded in the frontend. In Kubernetes, the frontend nginx container proxies API requests to the backend service, so we need relative URLs:

cd /tmp/ivmos-guitar-practice-app

# Replace hardcoded localhost with relative paths
sed -i "s|http://localhost:8000/api/|/api/|g" frontend/src/App.jsx
sed -i "s|const API_BASE = 'http://localhost:8000'|const API_BASE = ''|g" frontend/src/components/AudioPlayer.jsx

# Verify no localhost references remain
grep -r "localhost:8000" frontend/src/
# Should return empty

Step 2: Create Dockerfiles

The original repo doesn't include Dockerfiles, so we create them.

Backend

The backend needs Python 3.11 with native audio libraries — libsndfile for reading audio formats and ffmpeg for conversion:

FROM python:3.11-slim

RUN apt-get update && apt-get install -y --no-install-recommends \
    libsndfile1 ffmpeg && \
    rm -rf /var/lib/apt/lists/*

WORKDIR /app
COPY requirements.txt .
RUN pip install --no-cache-dir -r requirements.txt

COPY main.py .

RUN mkdir -p uploads processed

EXPOSE 8000
CMD ["uvicorn", "main:app", "--host", "0.0.0.0", "--port", "8000"]

Frontend

Multi-stage build: Node builds the React app, then nginx serves the static files and proxies API requests to the backend:

FROM node:20-alpine AS build
WORKDIR /app
COPY package*.json ./
RUN npm ci
COPY . .
RUN npm run build

FROM nginx:alpine
COPY --from=build /app/dist /usr/share/nginx/html
COPY nginx.conf /etc/nginx/conf.d/default.conf
EXPOSE 80

Nginx Config

The nginx config is the glue — it serves the React SPA for any route and proxies /api/ and /processed/ to the backend Kubernetes service by name:

server {
    listen 80;
    root /usr/share/nginx/html;
    index index.html;

    location / {
        try_files $uri $uri/ /index.html;
    }

    location /api/ {
        proxy_pass http://guitar-backend:8000;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        client_max_body_size 100M;
    }

    location /processed/ {
        proxy_pass http://guitar-backend:8000;
    }
}

The client_max_body_size 100M is important — audio files can be large and nginx defaults to 1MB.

The proxy_pass http://guitar-backend:8000 works because Kubernetes DNS resolves the service name guitar-backend to the ClusterIP automatically.

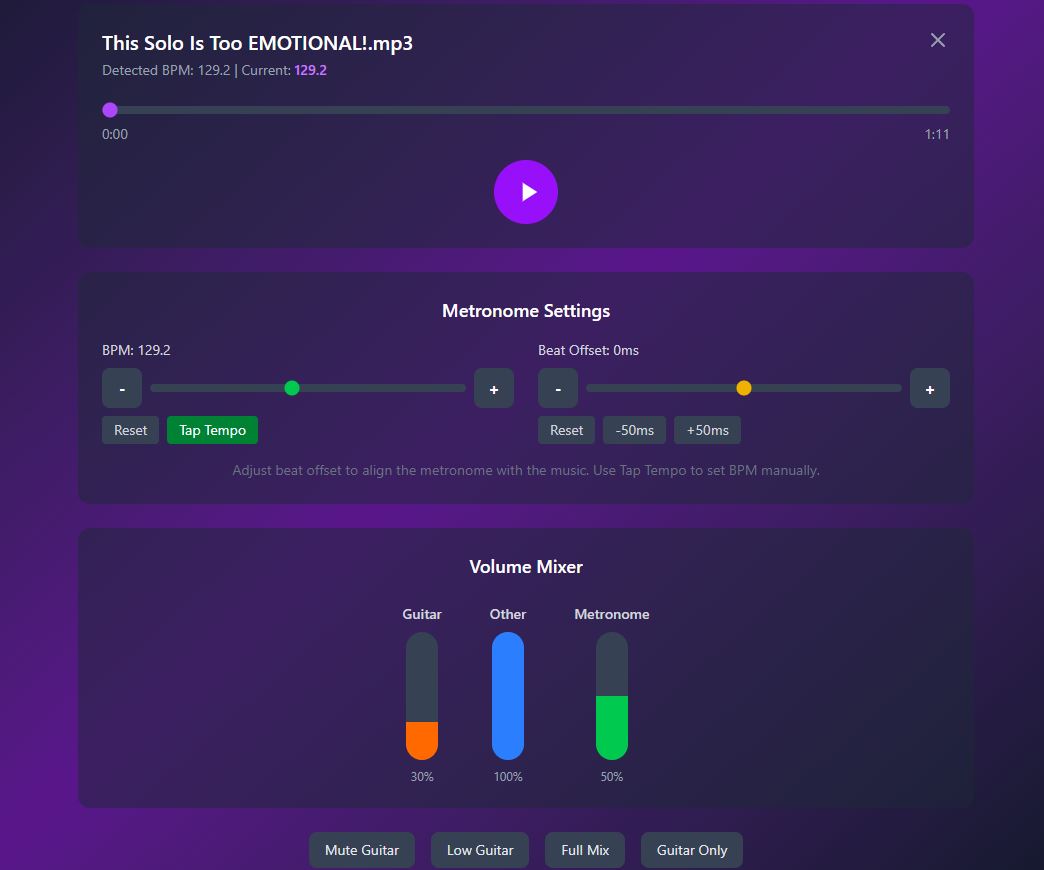

Guitar Practice App volume mixer interface

Step 3: Build Images

My cluster runs k3s with containerd, so I build with Docker and import into k3s:

cd /tmp/ivmos-guitar-practice-app/backend
sudo docker build -t guitar-backend:latest .

cd /tmp/ivmos-guitar-practice-app/frontend
sudo docker build -t guitar-frontend:latest .

# Import into k3s containerd
sudo docker save guitar-backend:latest | sudo k3s ctr images import -
sudo docker save guitar-frontend:latest | sudo k3s ctr images import -

# Verify
sudo k3s ctr images ls | grep guitar

Step 4: Deploy to k3s

Both deployments are pinned to k3master with nodeSelector. The frontend service gets a MetalLB LoadBalancer IP so it's accessible from the local network.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: guitar-backend
spec:
  replicas: 1
  selector:
    matchLabels:
      app: guitar-backend
  template:
    metadata:
      labels:
        app: guitar-backend
    spec:
      nodeSelector:
        kubernetes.io/hostname: k3master
      containers:
      - name: backend
        image: docker.io/library/guitar-backend:latest
        imagePullPolicy: Never
        ports:
        - containerPort: 8000
        resources:
          requests:
            memory: 256Mi
          limits:
            memory: 1Gi
---
apiVersion: v1
kind: Service
metadata:
  name: guitar-backend
spec:
  selector:
    app: guitar-backend
  ports:
  - port: 8000
    targetPort: 8000
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: guitar-frontend
spec:
  replicas: 1
  selector:
    matchLabels:
      app: guitar-frontend
  template:
    metadata:
      labels:
        app: guitar-frontend
    spec:
      nodeSelector:
        kubernetes.io/hostname: k3master
      containers:
      - name: frontend
        image: docker.io/library/guitar-frontend:latest
        imagePullPolicy: Never
        ports:
        - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: guitar-frontend
spec:
  type: LoadBalancer
  selector:
    app: guitar-frontend
  ports:
  - port: 80
    targetPort: 80

MetalLB assigns an IP from the homelab pool (in my case 192.168.100.202). Open it in a browser and you should see the upload interface.

Key Decisions

imagePullPolicy: Never — The images are built locally and imported into containerd. Without this flag, k3s would try to pull from Docker Hub and fail.

Backend pinned to k3master — The audio processing (FFT, BPM detection) is CPU-intensive. The backend image is also amd64-only since we built it on the laptop.

ClusterIP for backend, LoadBalancer for frontend — The backend doesn't need external access. The frontend nginx proxies all API traffic internally using Kubernetes service DNS (guitar-backend:8000). Only the frontend gets a MetalLB IP.

1Gi memory limit on backend — librosa loads entire audio files into memory as numpy arrays. A 5-minute WAV at 44.1kHz stereo is about 100MB in memory, and the FFT operations roughly double that.

How It Works

  1. Upload an MP3/WAV/FLAC file through the browser
  2. The backend detects BPM using librosa's beat tracking algorithm
  3. It separates the audio into "guitar" (80Hz–5kHz band) and "other" (everything else) using STFT frequency masking
  4. A metronome click track is generated at the detected BPM
  5. All stems are served as WAV files that the frontend plays simultaneously
  6. Volume sliders let you mix stems in real-time — mute the guitar to practice the part yourself

The frequency-based separation is a simple bandpass filter, not AI. The original app supports Demucs (a neural network stem separator) via the USE_DEMUCS=true environment variable for higher quality, but that would need a GPU or significantly more RAM.

Credits

The Guitar Practice App was created by ivmos. The original repository is at github.com/ivmos/ivmos-guitar-practice-app. I containerized it and deployed it to my k3s phone cluster as described above.

The k3s phone cluster setup is documented in my other blog post: I Built a Kubernetes Cluster from Old Phones and a Laptop.
